Salient Features :

FEEDER :

• Rising pile Integrated Feeder, Servo Driven
• Feeder Head is processor controlled, resulting inI accurate over-lap, Front & Side Lay
• Substrate Wt : 130 g/m² - 450 g/m²
• Dual Mechanism Feeder Head (Lift-Advance)
• Stacking Capacity 30” (800 mm)
• Control panel housing AC variable speed drive, PLC, & all feeder functions
• Double Sheet Detector

OPTIONAL UPGRADE :

• Pressure & Vacuum Pump for feeder air supply
• Pre-Loading device behind feeder, with railings and wheels for pile table.

LAMINATOR :

• Hydraulically regulated counter pressure roller
• Duplex unwind shafts with trim slitter & perforating mechanism, micro adjustable laterally
• 10” Diameter super polished, mirror finish chromed laminating roller
• PID type temp. controller unit with digital temperature display
• Thermal (oil immersed) Heater provides uniform temperature
• Rewind station with heavy duty clutch for take-up of aqueous & lower g/m² substrate for thermal / aqueous lamination.

BUSTER (SEPARATOR) :

• Dual advantage of sheeting in-line & off-line
• Pneumatically controlled in-feed nip rollers for precision sheeting (Air Compressor supplied)
• Synchronized single drive for thermal in-line sheeting
• Independent AC drive with helical speed reducer for off-line sheeting
• Sheet counter with DRO reception/collection unit, in-lieu of stacker

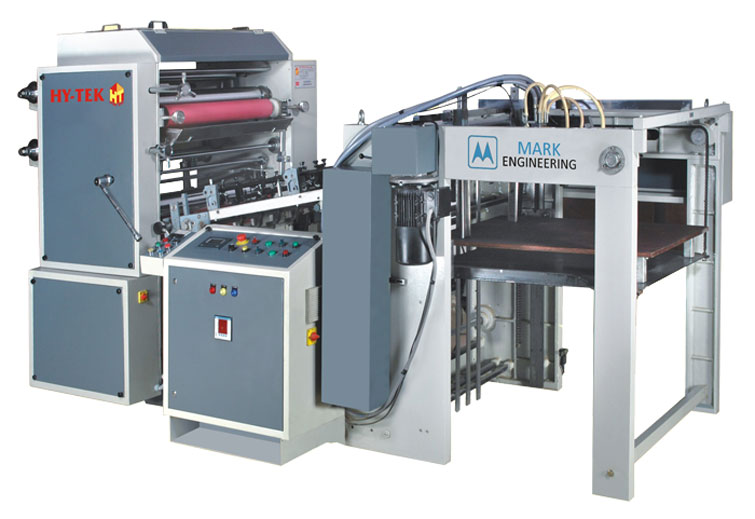

TECHNICAL SPECIFICATIONS HTP 800 AL 1

Feeding	Automatic
Paper Stock	130 - 450 g/m²
Pile Height	800 mm (28”)
Pile Weight	400 kg (Max)
Sheet width	350 X 710 mm
Sheet length	300 X 1020 mm
Speed (Aqueous)	0 - 65 m/min*
Speed (Thermal)	0 - 25 m/min*
Laminating Pressure	Hydraulic
Temperature band	80 -130° C
Power Requirements	8 kW X 415 v X 50 Hz
Footprint	11’ X 6’ (L x W)

*Production speed is subject to substrate and operating parameters
